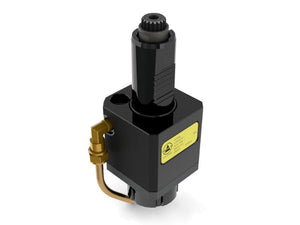

Axial Live Tool Holder VDI20 DIN 5480 THB-A02-20B
Our live tools are customized for your CNC machine's specific turret assembly. Live tooling will allow you to reduce the operations required to complete a job.
Hold Well Axial Live Tool Holder
- Driven Coupling - DIN 5480
- VDI20
- ER16 Output Interface
- Tool Holder produced in accordance with DIN 69880
- For left and right hand turret
- External Coolant
- Max. RPM - 6,000
| Model No. | A | B | D | E | F | G | H | I | J | N.W. (KG) |
| THB-A02-20B | 30 | 30 | 20 | 49 | 74 | 40 | 46.5 | ER16(1~10) | 32 | 1.1 |
Unit：mm
Our live tool holders will allow easy setup on your CNC lathe. Quality and precision is our main focus. We want to make sure that you are satisfied with your live tooling needs in your shop. CNC Tool Solutions offers a wide range of VDI driven radial and axial tool holders that you need to stay productive. Let us help you find the right tool holders for your specific lathe.
**Estimated Lead Time - 10-12 business days
**Lead time may vary based on manufacturer's stock
