Axial Swivel Gear Hobber Tool Holder VDI40 DIN 5480 THB-R29.115-40S
Our live tools are customized for your CNC lathe and it's specific turret assembly. Live tooling will allow you to reduce the operations required to complete a job.

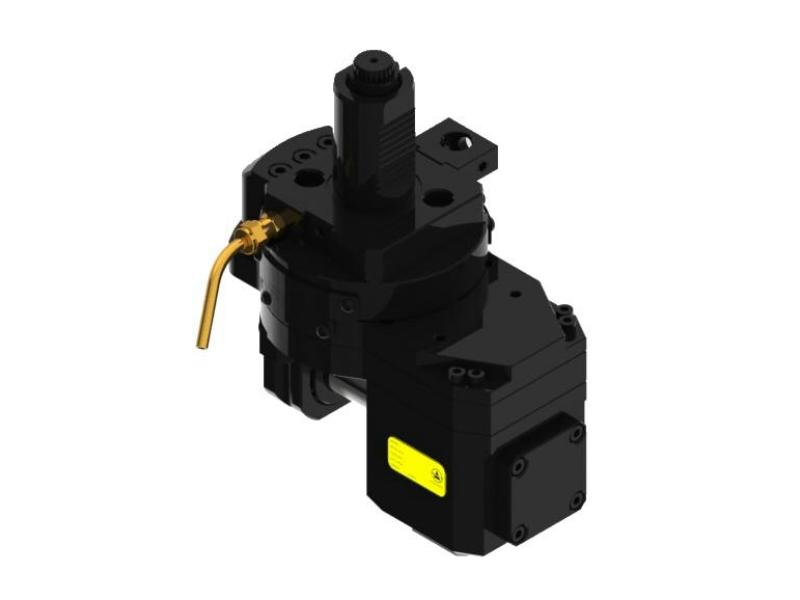

Hold Well Axial Swivel Gear Hobber Tool Holder
- Cutting angle can be set from +20° to -20° for various applications
- Suitable for machining spur gear and bevel gear
- VDI40
- Sauter Original Clutch
- For left and right hand turret
- External Coolant
- Gear Ratio 1.8:1
- Max RPM - 4,000

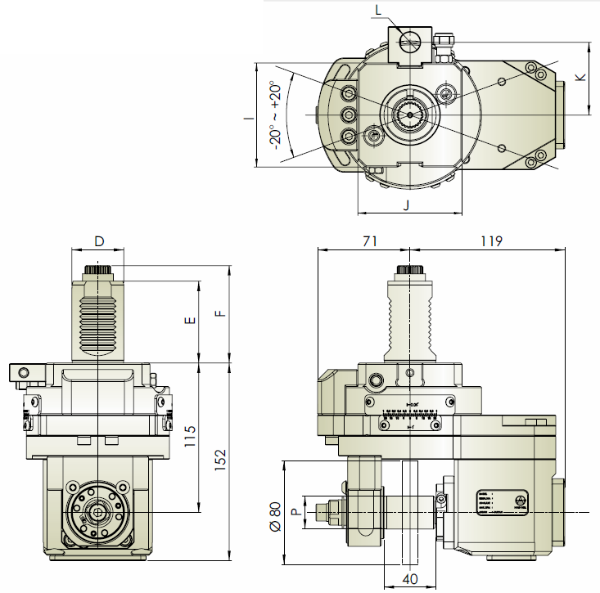

| Model No. | D | E | F | I | J | K | L | P | N.W. (KG) |
| THB-R29.115-40S | 40 | 63 | 75 | 80 | 80 | 56/63/70 | 15.5 | 22/25.4/27/31.75 | 8.5 |
Unit：mm
Our live tool holders will allow easy setup on your CNC lathe. Quality and precision is our main focus. We want to make sure that you are satisfied with your live tooling needs in your shop. CNC Tool Solutions offers a wide range of VDI driven radial and axial tool holders that you need to stay productive. Let us help you find the right tool holders for your specific lathe.
**Estimated Lead Time - 10-12 business days
**Lead time may vary based on manufacturer's stock
