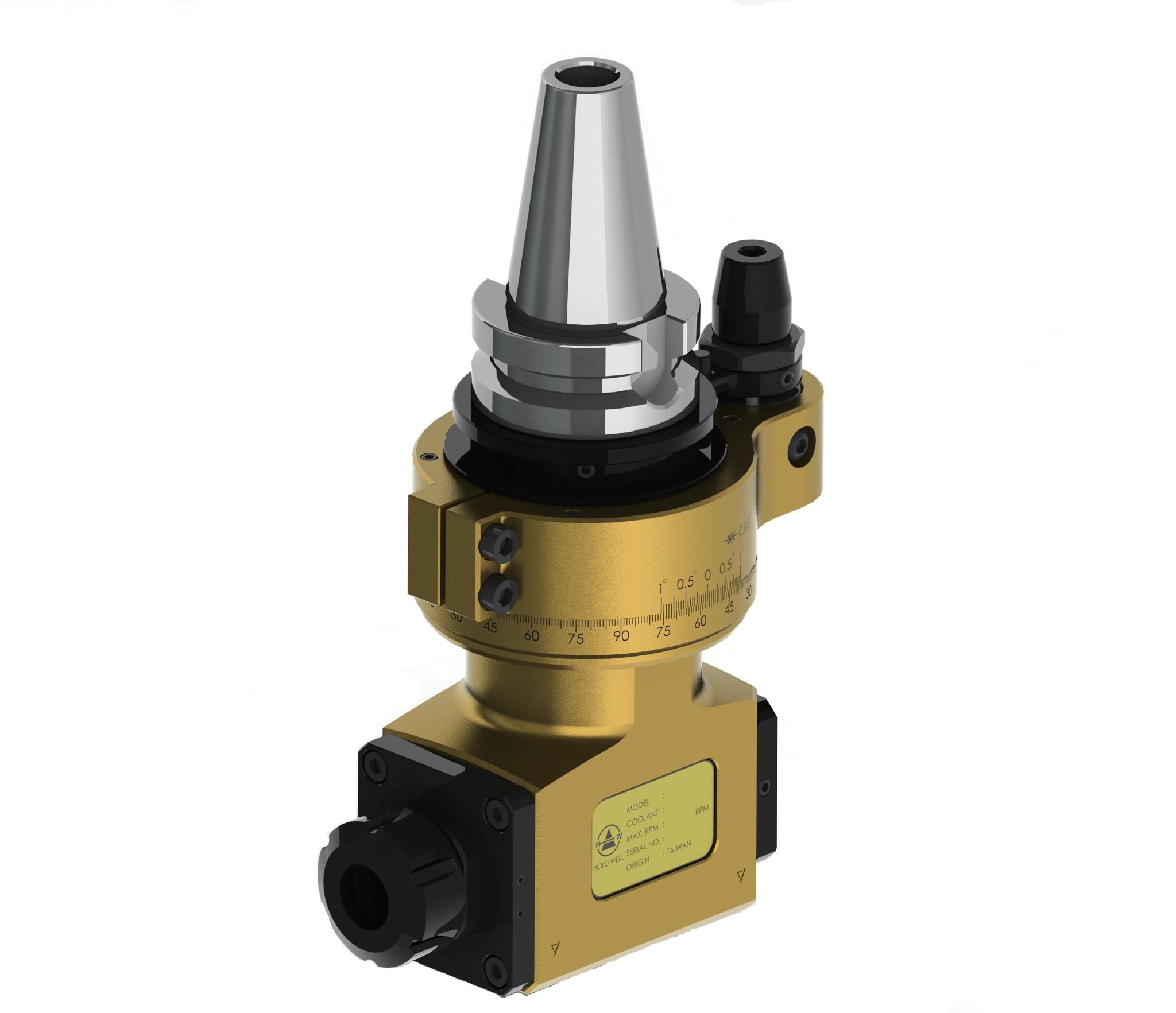

CAT50 ER25 90° Angle Head - AHL-CAT50-A2.80
Angle heads allow 3-axis machines to be more versatile. Angle heads enable horizontal milling and drilling without requiring the work-piece to be re-positioned. This allows multiple operations in just one setup. With angle heads, you're not simply just adding a tool, but increasing your machine's capability.
- CAT50-ER25 90° Angle Head
- Run-out：0.002 mm
- Material：Aerospace Alu. Alloy/Ductile Cast Iron / Alloy Steel
- R.P.M.：Max. 6,000 RPM
- Torque: Max. 30 Nm
- Gear Ratio：1:1
- Drilling: Max. 16mm
- Tapping: Max: M12
- Spindle Type：BT, NT, SK(ISO), CAT
- Standard Accessory：Open End Wrench, ER Wrench, ER Nut
- Output Rotation: Reverse to Input Rotation
- Compact and lighter body design is suitable for drilling, milling, and tapping application.
- Cutting direction can be adjusted from 0 ~ 360°.
- Enclosed positioning pin allows higher clamping torque

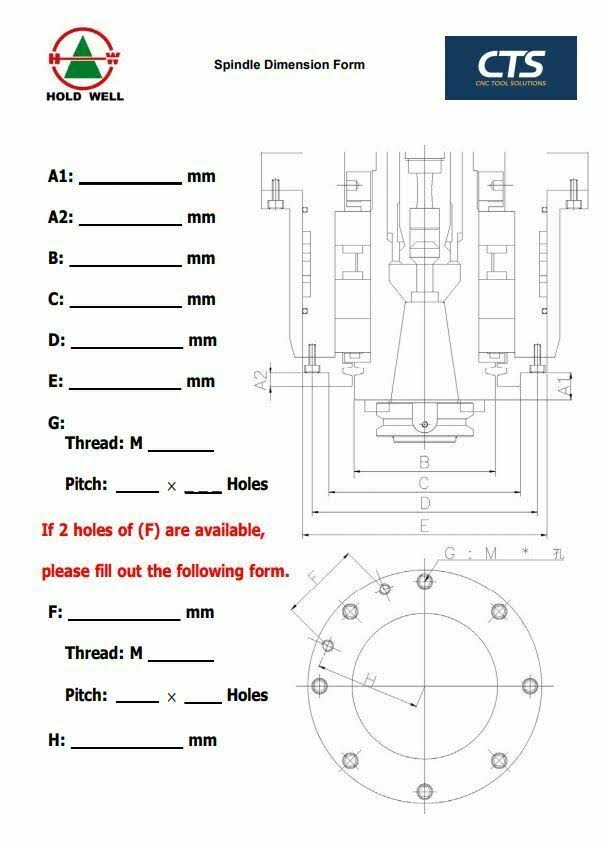

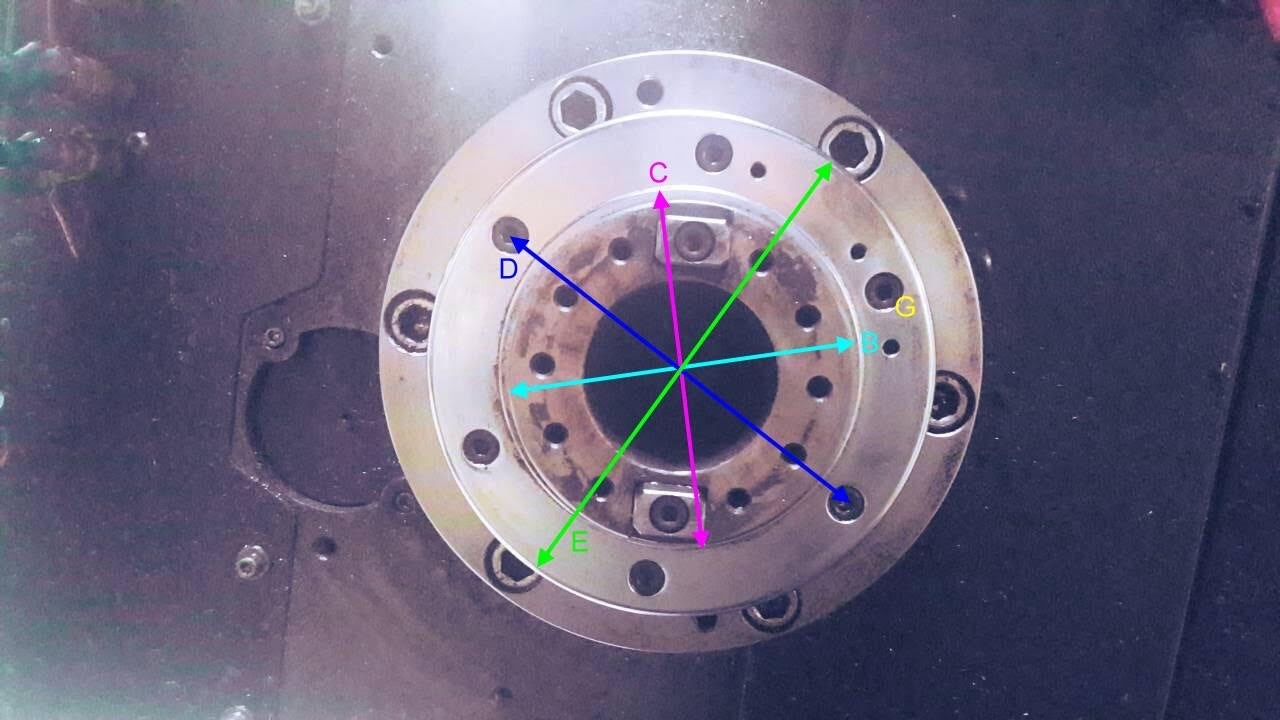

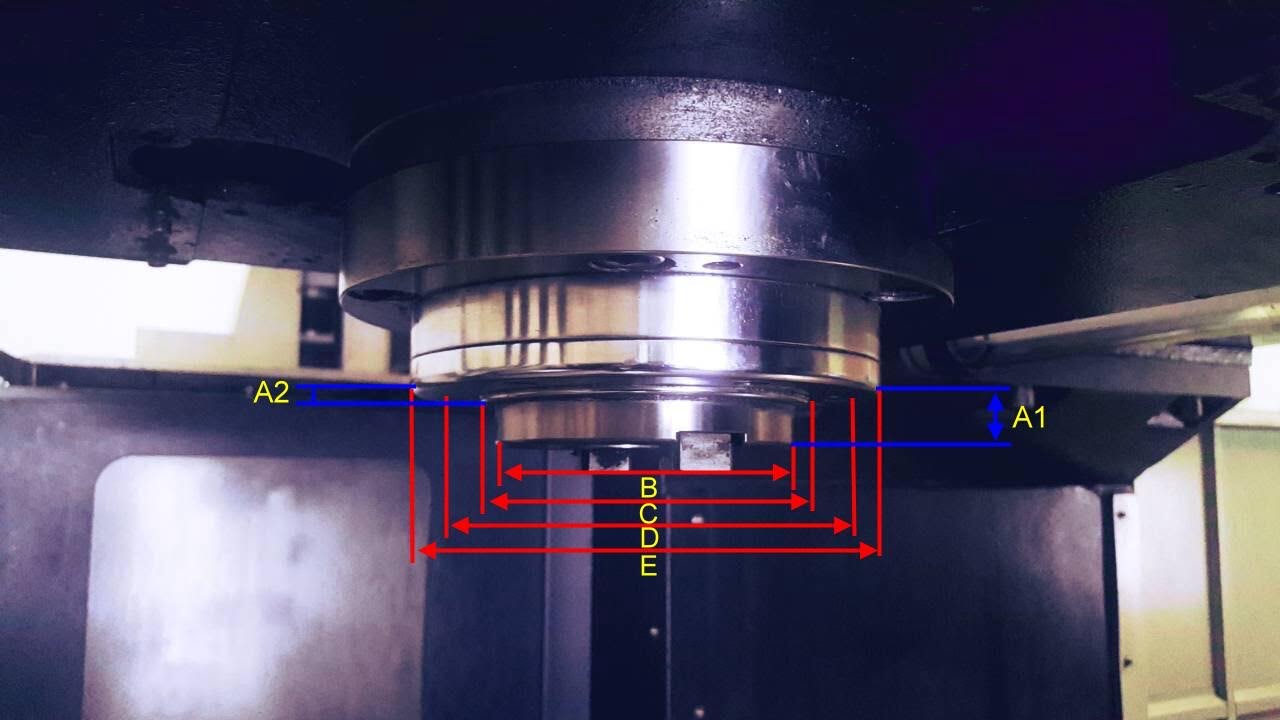

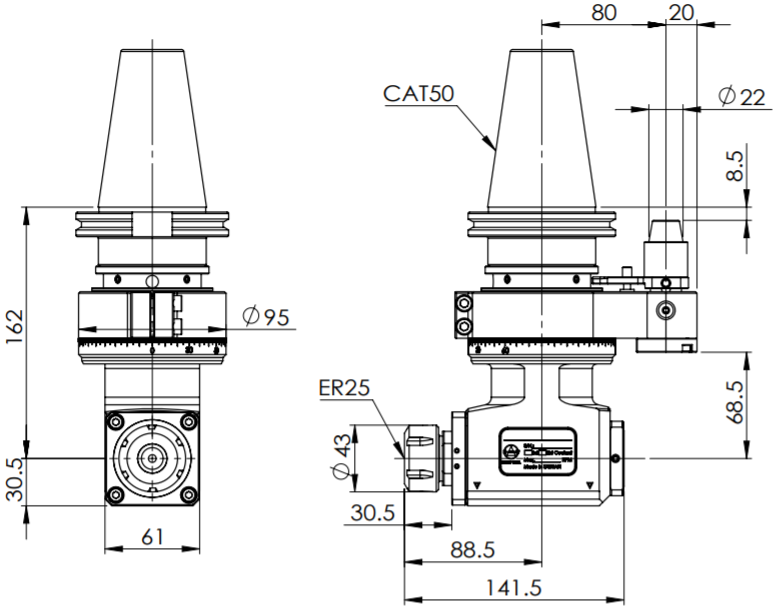

PLEASE SEE DIMENSION FORMS. EACH ANGLE HEAD COMES WITH A CUSTOM SETTING BLOCK FOR YOUR MACHINE. WE ALSO NEED THE MACHINE MAKE, MODEL, AND SERIAL NUMBER, AS WELL AS PICTURES OF THE SPINDLE (SEE PHOTOS IN GALLERY). A FOLLOW UP EMAIL WILL BE SENT UPON ORDERING TO COLLECT THIS INFORMATION FROM YOU!
**Lead time may vary based on manufacturer's stock
