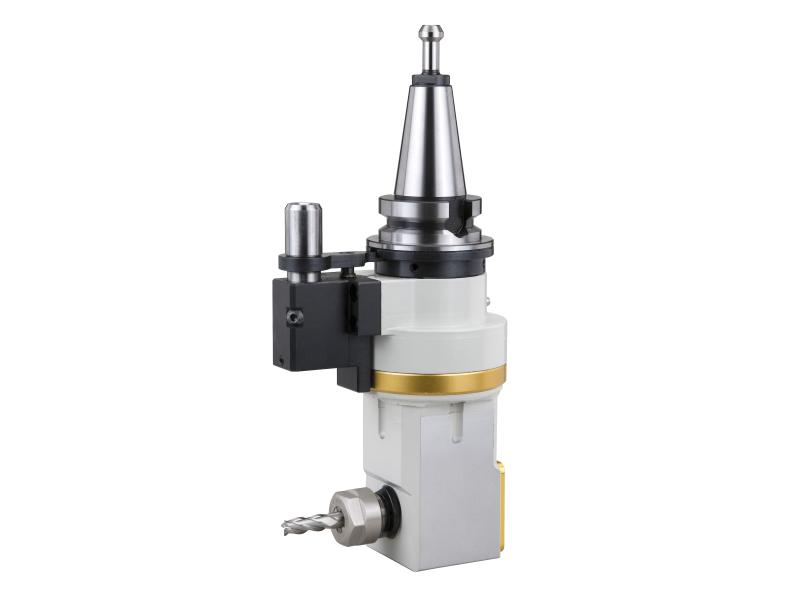

CAT50 ER20 90° Modular Angle Head (Compact) - AHD-CAT50-A2
Angle heads allow 3-axis machines to be more versatile. Angle heads enable horizontal milling and drilling without requiring the work-piece to be re-positioned. This allows multiple operations in just one setup. With angle heads, you're not simply just adding a tool, but increasing your machine's capability.
- CAT50-ER20 90° Angle Head (Compact Type)
- Run-out ： 0.002 mm
- Material ： Ductile Cast Iron
- R.P.M. ： Max. 4,000 RPM
- Torque ： Max. 15 Nm
- Gear Ratio ： 1:1
- Spindle Type ： BT, SK(ISO), CAT
- Standard Accessory： Hook Spanner ER Wrench, ER Nut
- Output Rotation - Reverse to Input Rotation
- Compact body design is the best tool for internal machining application.
- Can be automatic tool changed. Increases productivity.
- Cutting direction can be adjusted from 0 ~ 360°

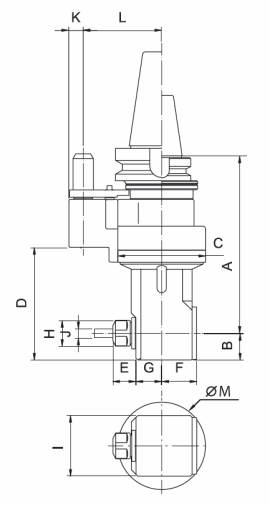

| Model No. | A | B | C | D | E max | F | G | H | I | J | K | L | M | N.W. (KG) |
| AHD-CAT50-A2 | 203 | 29 | 95 | 122 | 38 | 38 | 28 | 34 | 66 | 1-13(ER20) | 15.5 | 80/85/110 | 116 | 9.8 |
Unit：mm

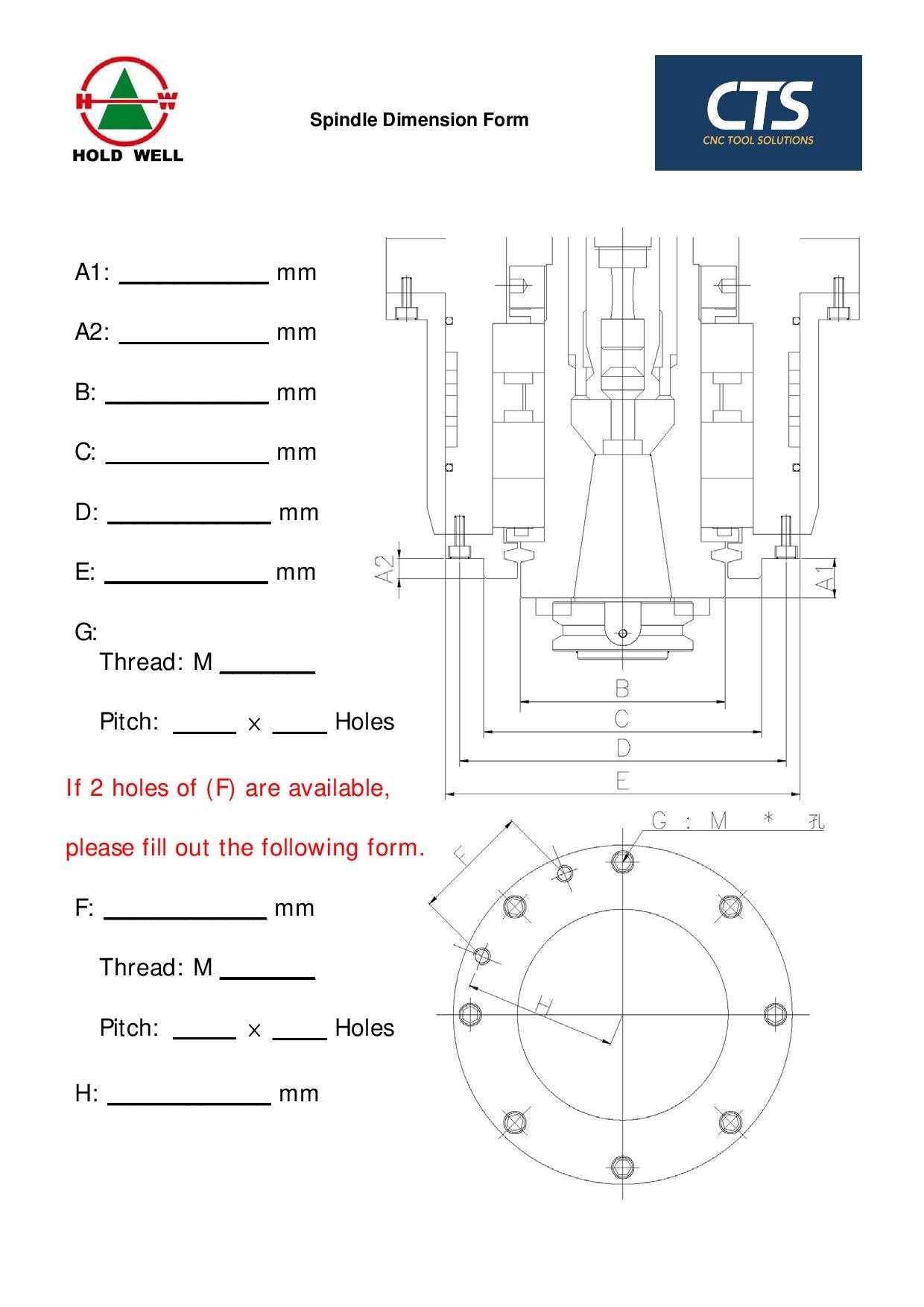

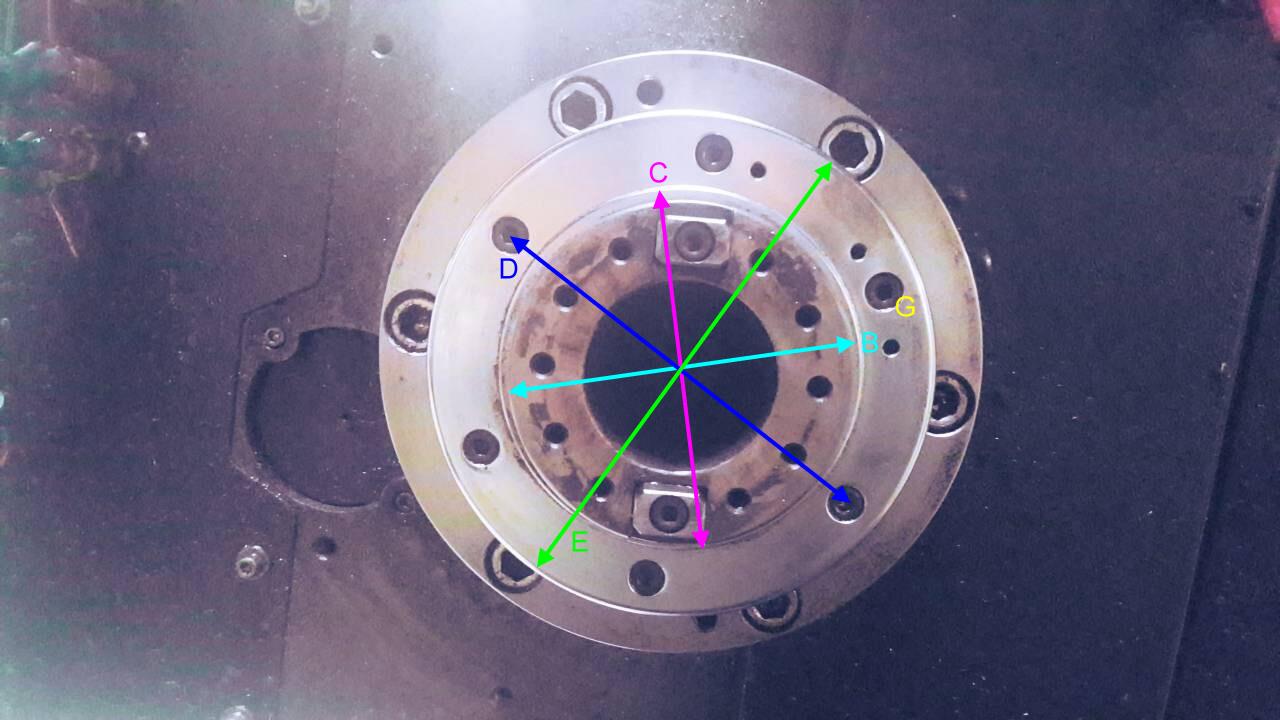

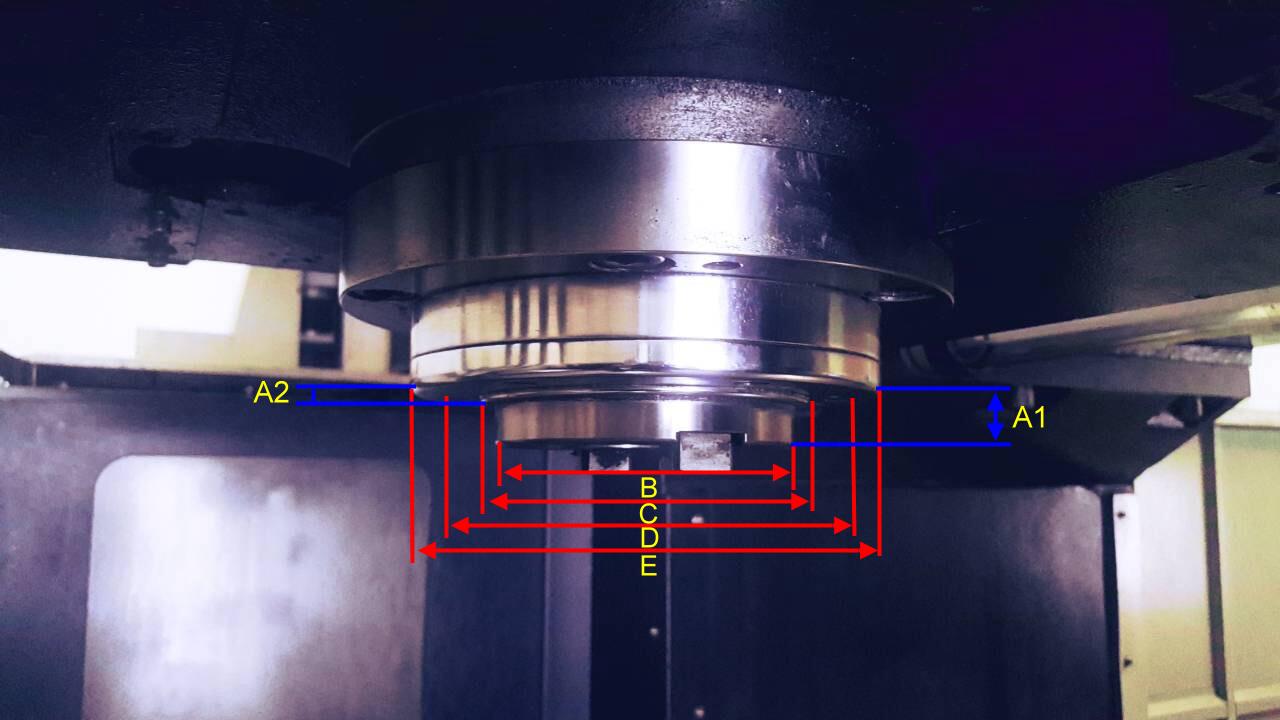

PLEASE SEE DIMENSION FORMS. EACH ANGLE HEAD COMES WITH A CUSTOM SETTING BLOCK FOR YOUR MACHINE. WE ALSO NEED THE MACHINE MAKE, MODEL, AND SERIAL NUMBER, AS WELL AS PICTURES OF THE SPINDLE (SEE PHOTOS IN GALLERY). A FOLLOW UP EMAIL WILL BE SENT UPON ORDERING TO COLLECT THIS INFORMATION FROM YOU!
**Estimated Lead Time - 10-12 business days
**Lead time may vary based on manufacturer's stock
