CAT50 ER20 45° Degree Angle Head - AHD-CAT50-B1
Angle heads allow 3-axis machines to be more versatile. Angle heads enable horizontal milling and drilling without requiring the work-piece to be re-positioned. This allows multiple operations in just one setup. With angle heads, you're not simply just adding a tool, but increasing your machine's capability.
- CAT50-ER20 45° Angle Head
- Run-out ： 0.002 mm
- Material ： Ductile Cast Iron
- R.P.M. ： Max. 4,000 RPM
- Torque ： Max. 15 Nm
- Gear Ratio ： 1:1
- Spindle Type ： BT, SK(ISO), CAT
- Standard Accessory： Hook Spanner ER Wrench, ER Nut
- Output Rotation - Reverse to Input Rotation
- The 45 degree design ensures 45 degree drilling, milling, and curved surface processing.
| Model No. | A | C | D | E | F | G | H | I | J | K | L | N.W. (KG) |
| AHD-CAT50-B1 | 249 | 95 | 139 | 30 | 46 | 33 | 34 | 66 | 1-13(ER20) | 15.5 | 80/85/100 | 10 |
Unit：mm

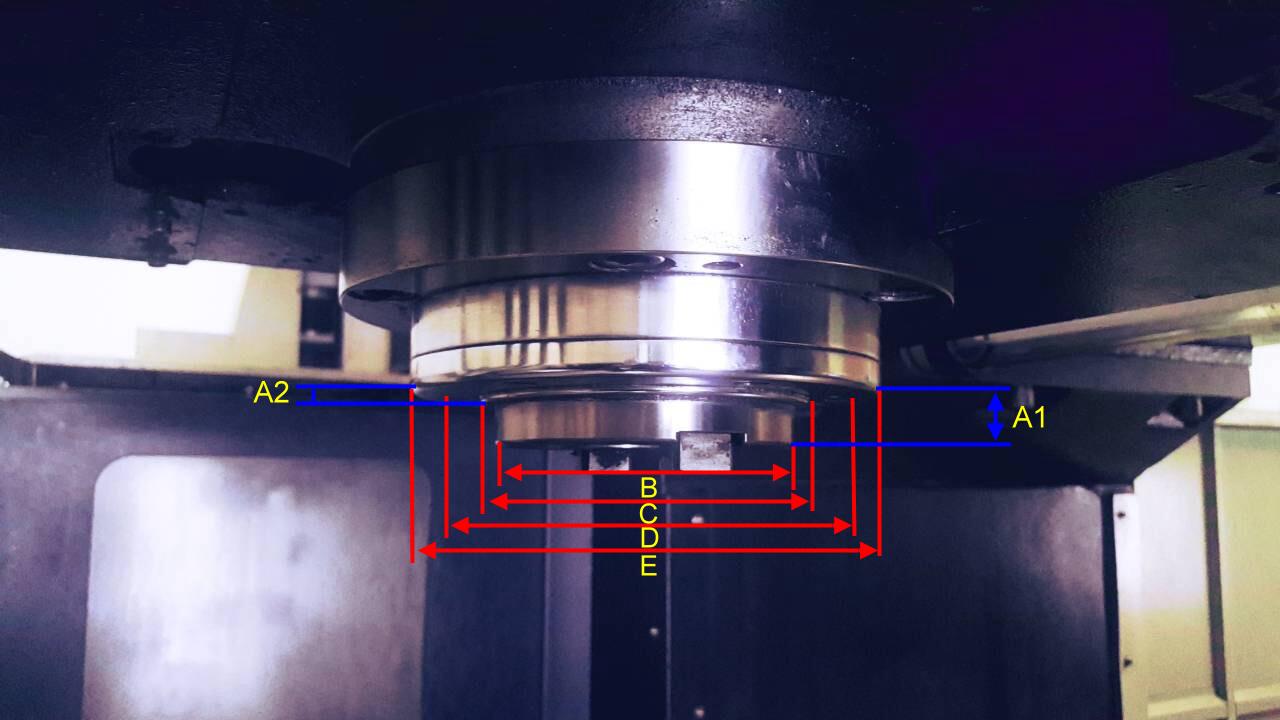

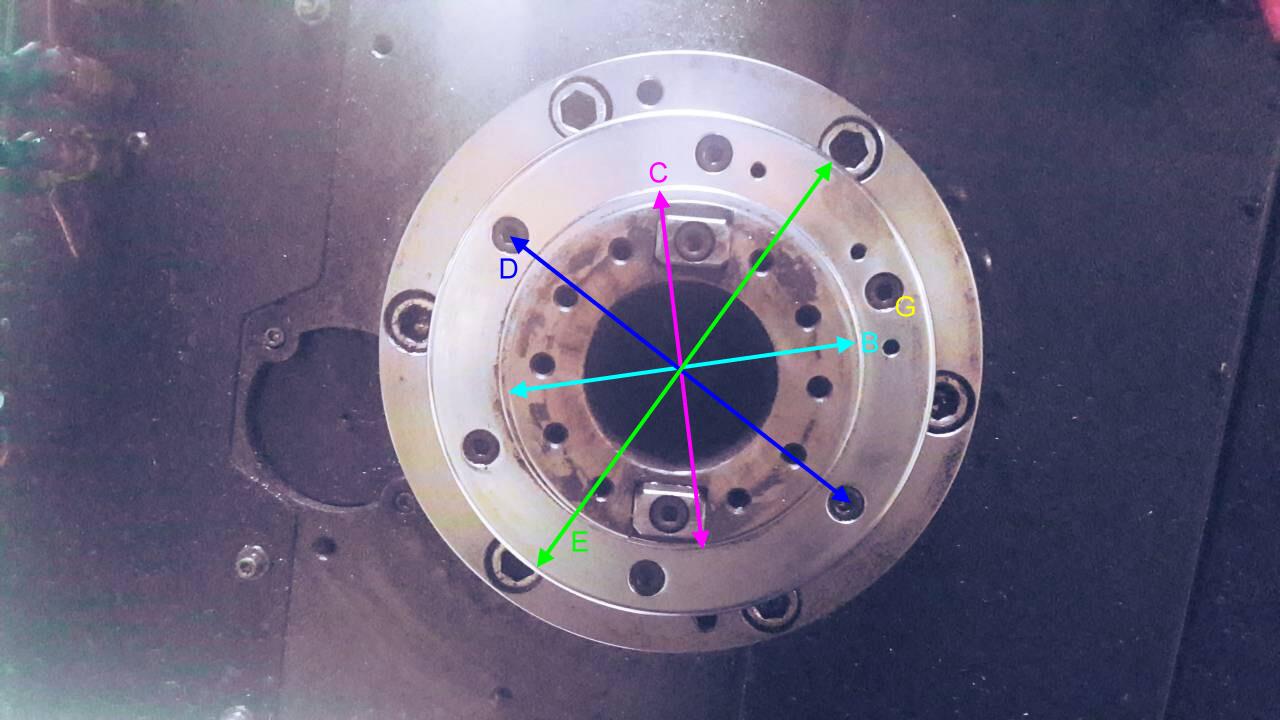

PLEASE SEE DIMENSION FORMS. EACH ANGLE HEAD COMES WITH A CUSTOM SETTING BLOCK FOR YOUR MACHINE. WE ALSO NEED THE MACHINE MAKE, MODEL, AND SERIAL NUMBER, AS WELL AS PICTURES OF THE SPINDLE (SEE PHOTOS IN GALLERY). A FOLLOW UP EMAIL WILL BE SENT UPON ORDERING TO COLLECT THIS INFORMATION FROM YOU!
**Estimated Lead Time - 10-12 business days
**Lead time may vary based on manufacturer's stock
