CAT40 Ultra Slim Angle Head - AHL-CAT40-C4.65

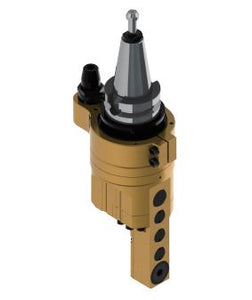

Diagram of CAT40 Ultra Slim Angle Head - AHL-CAT40-C4.65
Spec Sheet
Bottom view of spindle
front view of spindle

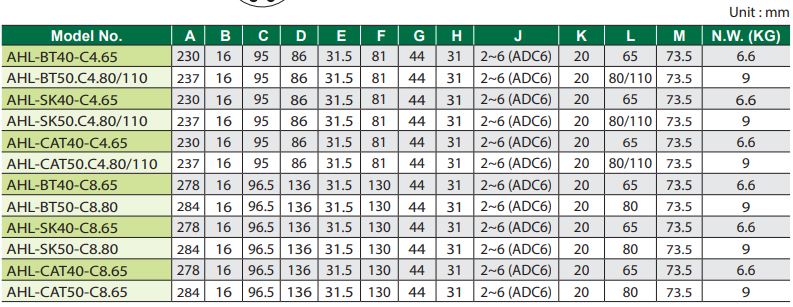

Spindle Dimension form

CAT40 Ultra Slim Angle Head - AHL-CAT40-C4.65

Please contact us if you are interested in this product.

Angle heads allow 3-axis machines to be more versatile.  Angle heads enable horizontal milling and drilling without requiring the work-piece to be re-positioned.  This allows multiple operations in just one setup.  With angle heads, you're not simply just adding a tool, but increasing your machine's capability.

  • CAT40 Ultra Slim Angle Head
  • Run-out：0.002 mm
  • Material：Alloy Steel
  • R.P.M.：Max. 5,000 RPM
  • Torque: Max. 8 Nm
  • Drilling: Max. 6mm
  • Tapping: Max. M5
  • Gear Ratio：1:1
  • Spindle Type：BT, SK, CAT
  • Standard Accessory：T Handle hex. wrench
  • Output Rotation: Reverse to Input Rotation
  • Compact and longer body design is suitable for machining the deep hole and deep slot
  • Can be automatically tool changed
  • Enclosed positioning pin: cutting direction can be adjusted from 0~360°.

PLEASE SEE DIMENSION FORMS. EACH ANGLE HEAD COMES WITH A CUSTOM SETTING BLOCK FOR YOUR MACHINE. WE ALSO NEED THE MACHINE MAKE, MODEL, AND SERIAL NUMBER, AS WELL AS PICTURES OF THE SPINDLE (SEE PHOTOS IN GALLERY). A FOLLOW UP EMAIL WILL BE SENT UPON ORDERING TO COLLECT THIS INFORMATION FROM YOU!

**Estimated Lead Time - 10-12 business days

**Lead time may vary based on manufacturer's stock
