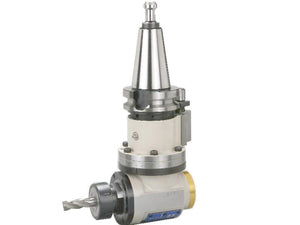

CAT40 ER40 90° Angle Head - AHB-CAT40-ER40
Angle heads allow 3-axis machines to be more versatile. Angle heads enable horizontal milling and drilling without requiring the work-piece to be re-positioned. This allows multiple operations in just one setup. With angle heads, you're not simply just adding a tool, but increasing your machine's capability.
- CAT40-ER40 90° Angle Head (AHB Type)
- Run-out:0.002 mm
- Squareness:10 Arc Second
- Material:Ductile Cast Iron (FCD65)
- R.P.M.:Max. 4000 RPM
- Torque: Max. 47 Nm
- Gear Ratio:1:1
- Spindle Type:BT, NT, SK(ISO), CAT
- Standard Accessory:Hook Spanner, ER Wrench, ER Nut
- Output Rotation: Reverse to Input Rotation
- The body is made of Ductile Cast Iron.
- High strength steel; stable machining.
Model No. | A | B | C | D | E max | F | G | H | I | J | K | L | N.W. (KG) |
AHB-CAT40-ER40 | 192 | 44.5 | 120 | 127.5 | 44 | 70 | 65 | 63 | 90 | 4-26 | 17 | 70/80/85 | 12.1 |
Unit:mm

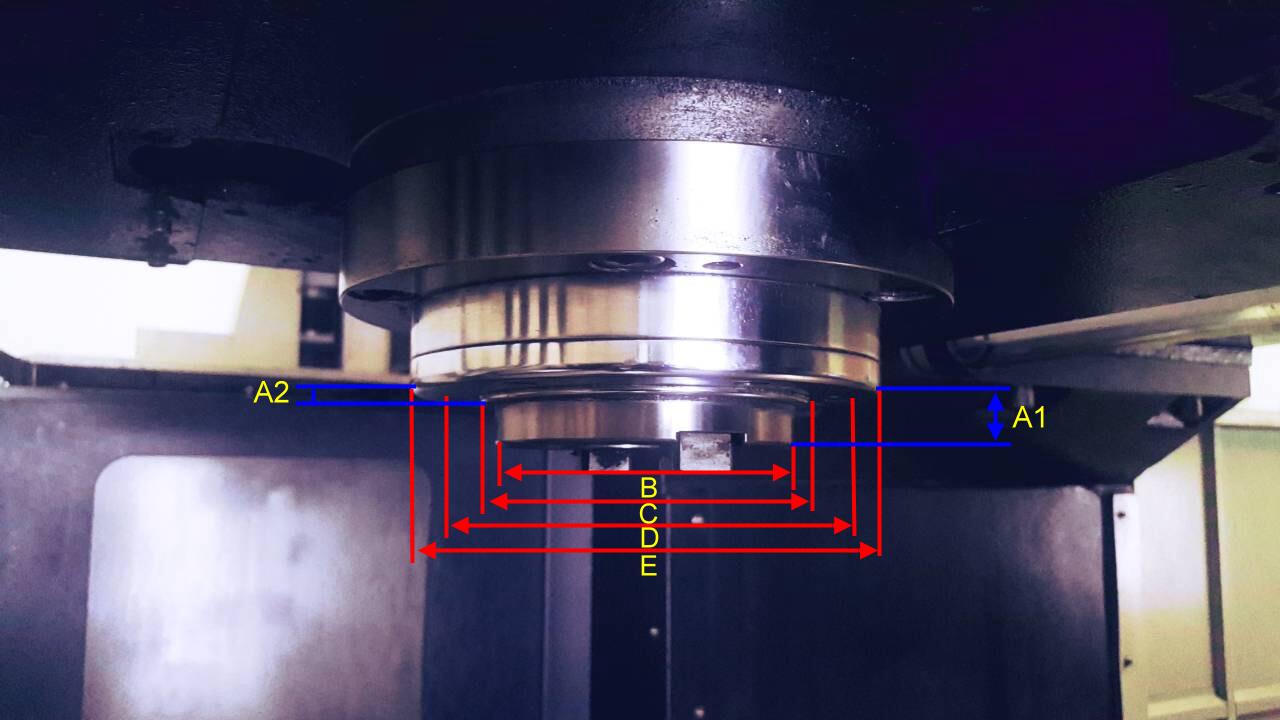

PLEASE SEE DIMENSION FORMS. EACH ANGLE HEAD COMES WITH A CUSTOM SETTING BLOCK FOR YOUR MACHINE. WE ALSO NEED THE MACHINE MAKE, MODEL, AND SERIAL NUMBER, AS WELL AS PICTURES OF THE SPINDLE (SEE PHOTOS IN GALLERY). A FOLLOW UP EMAIL WILL BE SENT UPON ORDERING TO COLLECT THIS INFORMATION FROM YOU!
**Estimated Lead Time - 10-12 business days
**Lead time may vary based on manufacturer's stock
