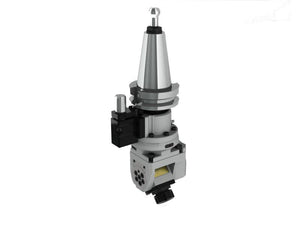

CAT40 ER25 Universal Angle Head - AHG-CAT40-A2
Angle heads allow 3-axis machines to be more versatile. Angle heads enable horizontal milling and drilling without requiring the work-piece to be re-positioned. This allows multiple operations in just one setup. With angle heads, you're not simply just adding a tool, but increasing your machine's capability.
- CAT40-ER25 Universal Angle Head (AHG Type)
- Run-out：0.002 mm
- Material：Alloy Steel & Ductile Cast Iron (FCD65)
- R.P.M.：Max. 4000 RPM
- Torque: Max. 20 Nm
- Gear Ratio：1:1
- Spindle Type：BT, SK(ISO), CAT
- Standard Accessory：Open End Wrench, ER Wrench, ER Nut
- Output Rotation: Reverse to Input Rotation
- Cutting angle can be set from 0 ~ ±90 degree for various applications.
- Compact design provides extra strength, oil-proof, dust-proof, and duration.
| Model No. | A | B max | C | D | E max | F | G | H | I | J | K | L | M | N | N.W. (KG) |
| AHG-CAT40-A1 | 184.5 | 89 | 103 | 87.6 | 32 | 38 | 70.7 | 42 | 76 | 64.5 | 17 | 65/80/85 | 29.5 |
2-16(ER25) |
9 |
Unit：mm

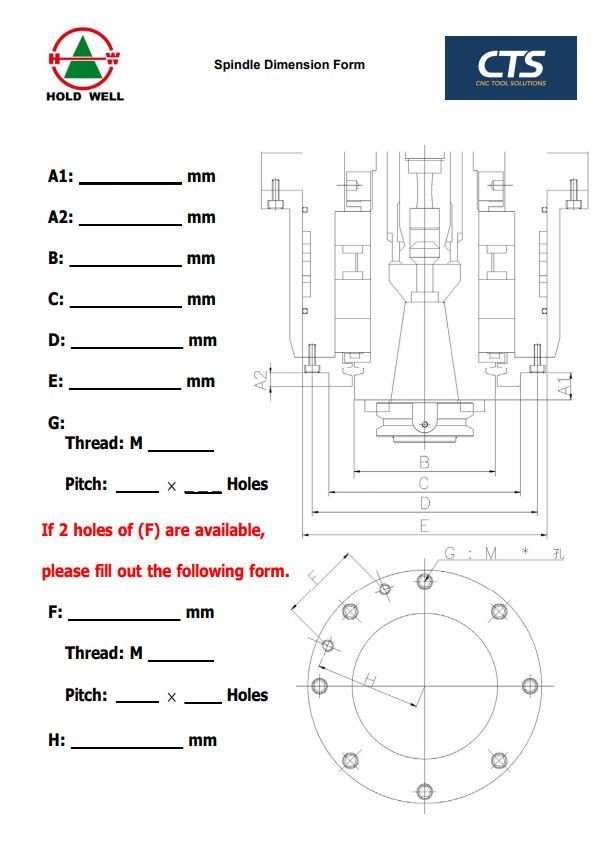

PLEASE SEE DIMENSION FORMS. EACH ANGLE HEAD COMES WITH A CUSTOM SETTING BLOCK FOR YOUR MACHINE. WE ALSO NEED THE MACHINE MAKE, MODEL, AND SERIAL NUMBER, AS WELL AS PICTURES OF THE SPINDLE (SEE PHOTOS IN GALLERY). A FOLLOW UP EMAIL WILL BE SENT UPON ORDERING TO COLLECT THIS INFORMATION FROM YOU!
**Estimated Lead Time - 10-12 business days
**Lead time may vary based on manufacturer's stock
