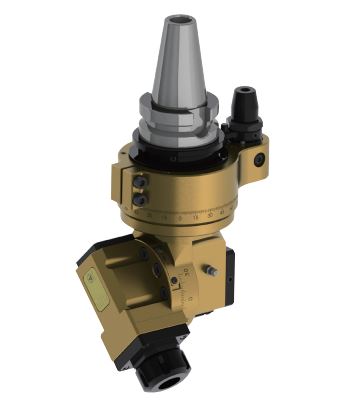

CAT40 ER20 Universal Light Angle Head - AHL-CAT40-B1.65G
Angle heads allow 3-axis machines to be more versatile. Angle heads enable horizontal milling and drilling without requiring the work-piece to be re-positioned. This allows multiple operations in just one setup. With angle heads, you're not simply just adding a tool, but increasing your machine's capability.
- CAT40 ER20 Universal Light Angle Head
- Cutting angle can be set from 0°~+/- 120° for various applications
- Compact design provides extra strength
- Can be automatic tool changed - increases productivity
- Enclosed positioning pin: Cutting direction can be adjusted from 0~360°.
- Allows higher clamping torque and cutting direction can remain during machining.
- Run-Out: 0.002mm
- Material: Alloy Steel
- MAX RPM; 6,000
- Torque: Max 9Nm
- Drilling: Max 10mm
- Tapping: Max M6
- Gear Ratio 1:1
- Standard Accessory: Open end wrench, ER wrench, ER nut
- Output Rotation: Same as input rotation

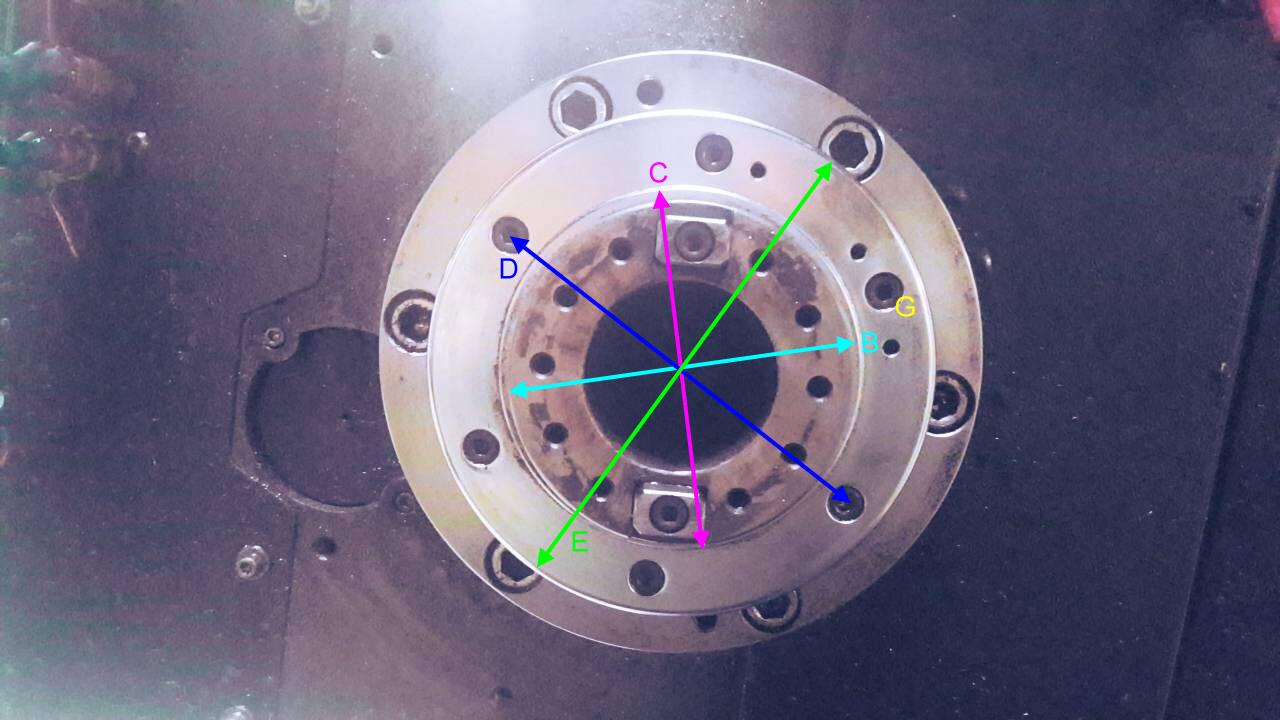

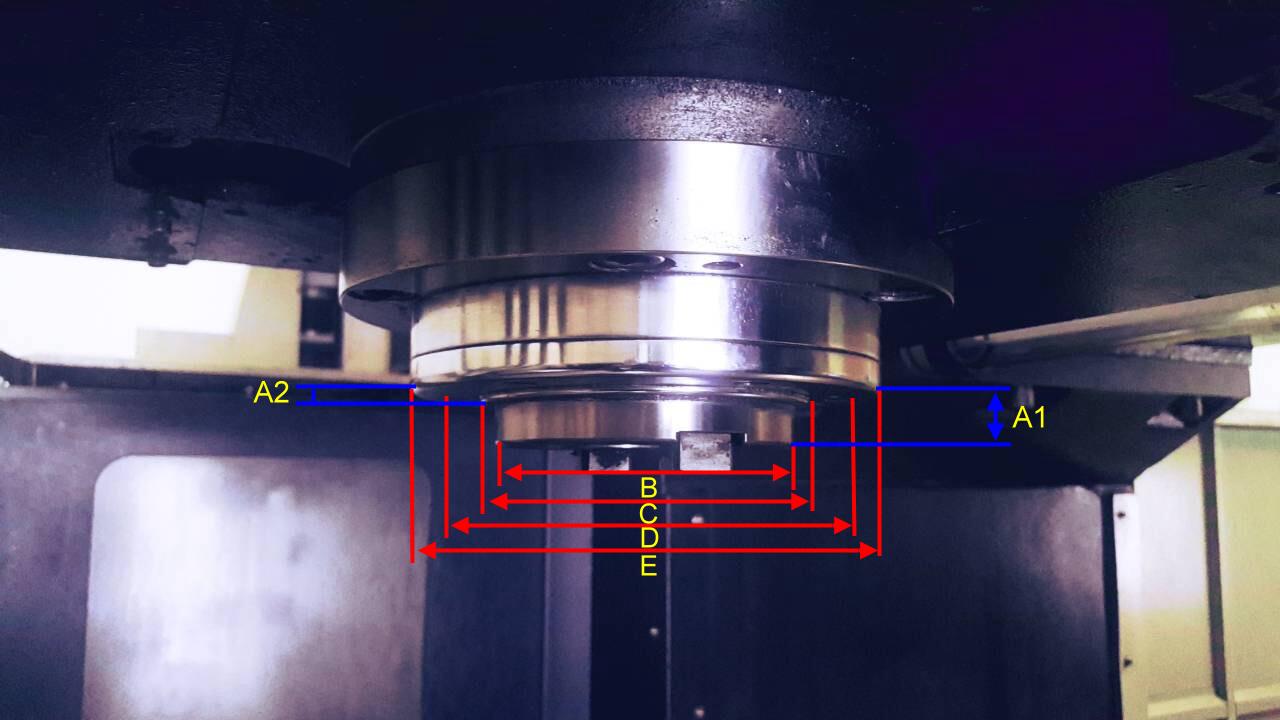

- PLEASE SEE DIMENSION FORMS. EACH ANGLE HEAD COMES WITH A CUSTOM SETTING BLOCK FOR YOUR MACHINE. WE ALSO NEED THE MACHINE MAKE, MODEL, AND SERIAL NUMBER, AS WELL AS PICTURES OF THE SPINDLE (SEE PHOTOS IN GALLERY). A FOLLOW UP EMAIL WILL BE SENT UPON ORDERING TO COLLECT THIS INFORMATION FROM YOU!
-
**Estimated Lead Time - 10-12 business days
**Lead time may vary based on manufacturer's stock
