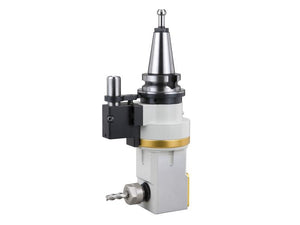

CAT40 ER20 90° Modular Angle Head (Compact) - AHD-CAT40-A2

  • Unit price per

Please contact us if you are interested in this product.


Angle heads allow 3-axis machines to be more versatile.  Angle heads enable horizontal milling and drilling without requiring the work-piece to be re-positioned.  This allows multiple operations in just one setup.  With angle heads, you're not simply just adding a tool, but increasing your machine's capability.

  • CAT40-ER20 90° Angle Head (Compact Type)
  • Run-out : 0.002 mm
  • Material : Ductile Cast Iron
  • R.P.M. : Max. 4,000 RPM
  • Torque : Max. 15 Nm
  • Gear Ratio : 1:1
  • Spindle Type : BT, SK(ISO), CAT
  • Standard Accessory: Hook Spanner ER Wrench, ER Nut
  • Output Rotation - Reverse to Input Rotation
  • Compact body design is the best tool for internal machining application.
  • Can be automatic tool changed. Increases productivity.
  • Cutting direction can be adjusted from 0 ~ 360°
Model No. A B C D E max F G H I J K L M N.W. (KG)
AHD-CAT40-A2 192 29 95 122 38 38 28 34 66 1-13(ER20) 15.5 65/80/85 116 6.9
Unit:mm
PLEASE SEE DIMENSION FORMS.  EACH ANGLE HEAD COMES WITH A CUSTOM SETTING BLOCK FOR YOUR MACHINE.  WE ALSO NEED THE MACHINE MAKE, MODEL, AND SERIAL NUMBER, AS WELL AS PICTURES OF THE SPINDLE (SEE PHOTOS IN GALLERY).  A FOLLOW UP EMAIL WILL BE SENT UPON ORDERING TO COLLECT THIS INFORMATION FROM YOU!

**Estimated Lead Time -  10-12 business days

**Lead time may vary based on manufacturer's stock
