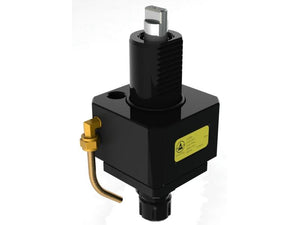

Axial ER Tapping Tool Holder VDI40 DIN 1809 THB-A15-40A
Our live tools are customized for your CNC Lathe and it's specific turret assembly. Live tooling will allow you to reduce the operations required to complete a job.
Hold Well Axial ER Tapping Tool Holder
- VDI40-1809-TER20 Axial ER Tapping Driven Tool Holder
- Tool Holder is produced in accordance with DIN 69880
- Driven Coupling is according to DIN 1809
- ER Collet is according to DIN 6499
- For left hand and right hand turret
- R.P.M.：Max. 3,000 RPM

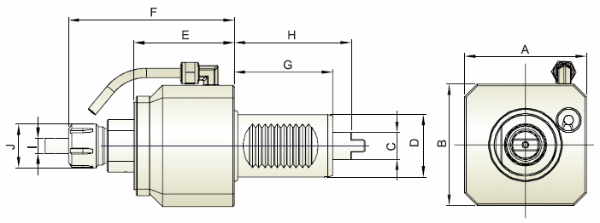

| Model No. | A | B | C | D | E | F | G | H | I | J | N.W. (KG) |
| THB-A15-40A | 78 | 78 | 18 | 40 | 63 | 106 | 51 | 72 | M3~M12 | 34 | 3 |
Unit：mm
Our live tool holders will allow easy setup on your CNC lathe. Quality and precision is our main focus. We want to make sure that you are satisfied with your live tooling needs in your shop. CNC Tool Solutions offers a wide range of VDI driven radial and axial tool holders that you need to stay productive. Let us help you find the right tool holders for your specific lathe.
**Estimated Lead Time - 10-12 business days
**Lead time may vary based on manufacturer's stock
