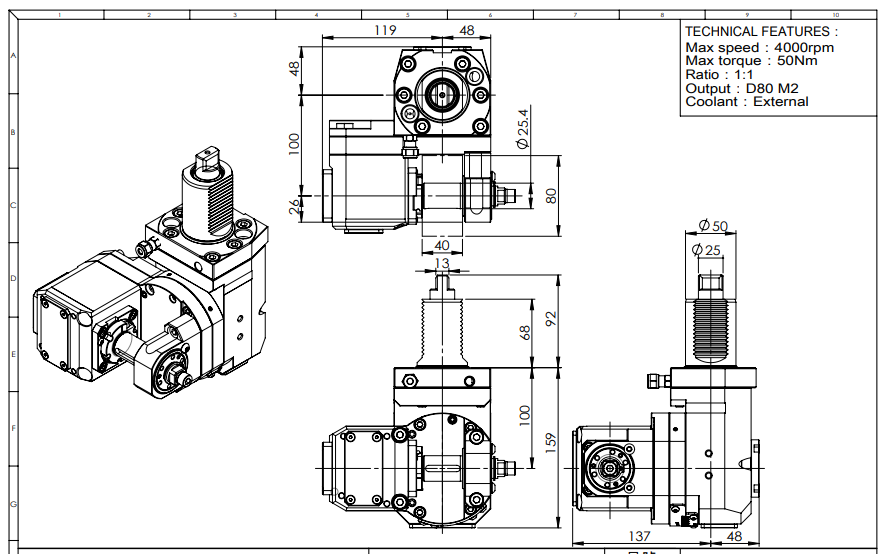

Radial Swivel Gear Hobber Tool Holder VDI50 DIN 1809 THB-T29.100-50A
Our live tools are customized for your CNC lathe and it's specific turret assembly. Live tooling will allow you to reduce the operations required to complete a job.

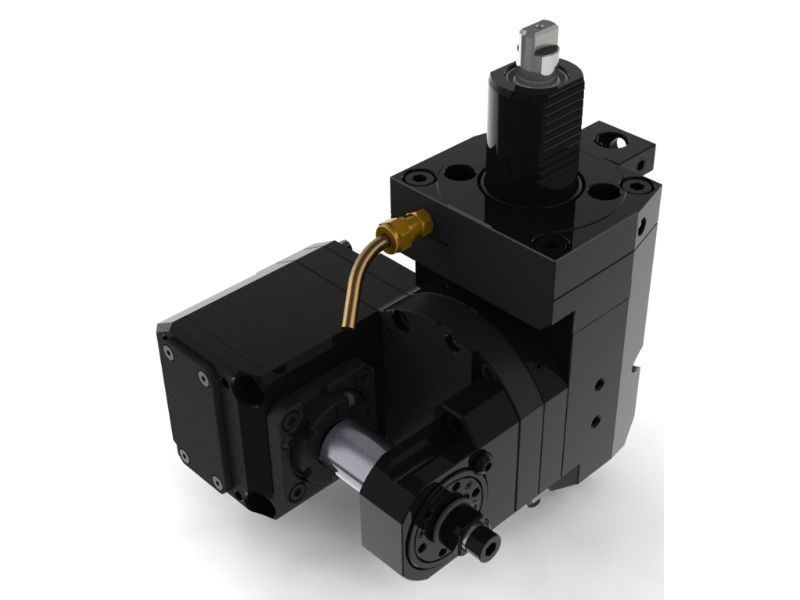

Hold Well Radial Offset Driven Tool Holder
- Tool Holder is produced in accordance with DIN 69880
- Driven coupling - DIN 1809
- Cutting angle can be set from +20° to -20° for various applications
- For left and right hand turret
- External coolant
- Gear Ratio 2.76:1
- Max RPM - 4,000

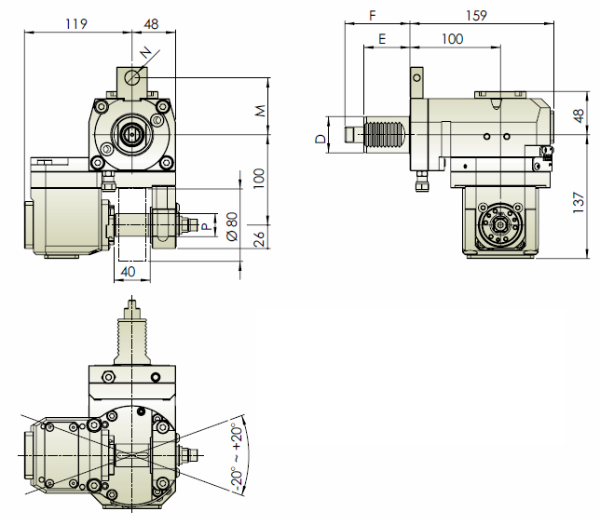

| Model No. | D | E | F | M | N | P | N.W. (KG) |
| THB-T29.100-50A | 50 | 68 | 92 | 70/88 | 18 | 22/25.4/27/31.75 | 12.8 |
Unit：mm
Our live tool holders will allow easy setup on your CNC lathe. Quality and precision is our main focus. We want to make sure that you are satisfied with your live tooling needs in your shop. CNC Tool Solutions offers a wide range of VDI driven radial and axial tool holders that you need to stay productive. Let us help you find the right tool holders for your specific lathe.
**Estimated Lead Time - 10-12 business days
**Lead time may vary based on manufacturer's stock
