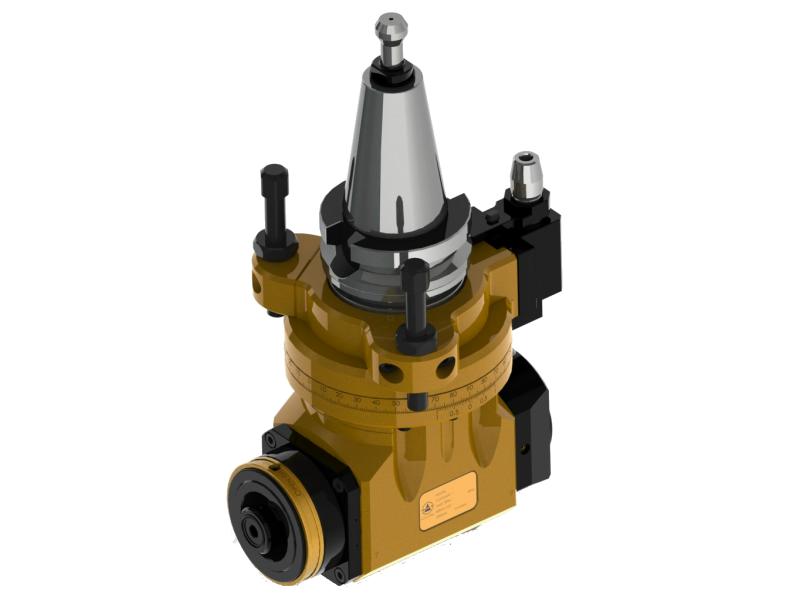

CAT50 Multi-Block Angle Head HSK63 - AHK-CAT50-B2
Angle heads allow 3-axis machines to be more versatile. Angle heads enable horizontal milling and drilling without requiring the work-piece to be re-positioned. This allows multiple operations in just one setup. With angle heads, you're not simply just adding a tool, but increasing your machine's capability.
- CAT50 Multi-Block Angle Head
- Run-out：0.002 mm
- Material：Alloy Steel
- R.P.M.：Max. 4000 RPM
- Torque: Max. 60 Nm
- Gear Ratio：1:1
- Spindle Type：BT, SK, CAT
- Standard Accessory：Open End Wrench, L Type Wrench
- Output Rotation: Reverse to Input Rotation
- The output interface of HSK63 ensures wide-range application with various tool holders.
- Multi-block support system improves working rigidity and stability.
- The automatic disengagement and engagement of Angle Head can be easily operated on the base of table.
- Hardened precision spiral bevel gears ensure stable performance with long service life.
- Cutting direction can be adjusted from 0 ~ 360
- Rugged Alloy Steel body construction with compact design

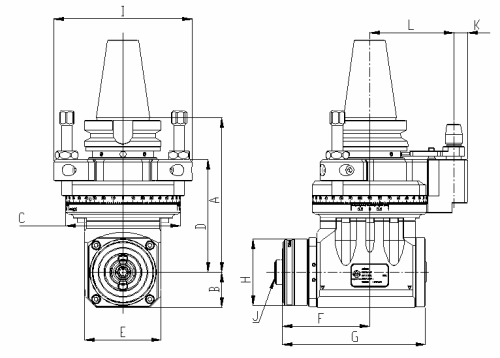

| Model No. | A | B | C | D | E | F | G | H | I | J | K | L | N.W. (KG) |
| AHK-CAT50-B2 | 202.5 | 46 | 150 | 148 | 100 | 100 | 208 | 87 | 239 | HSK63 | 18 | 110 | 23.4 |
Unit：mm

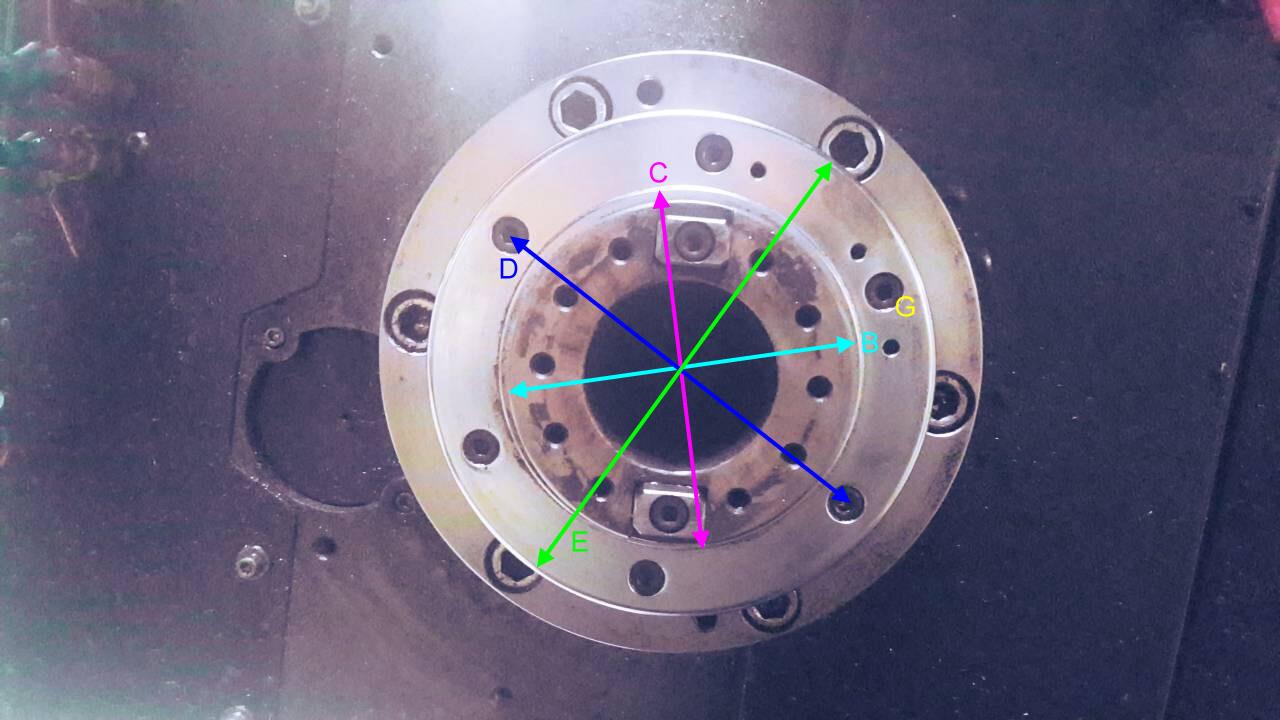

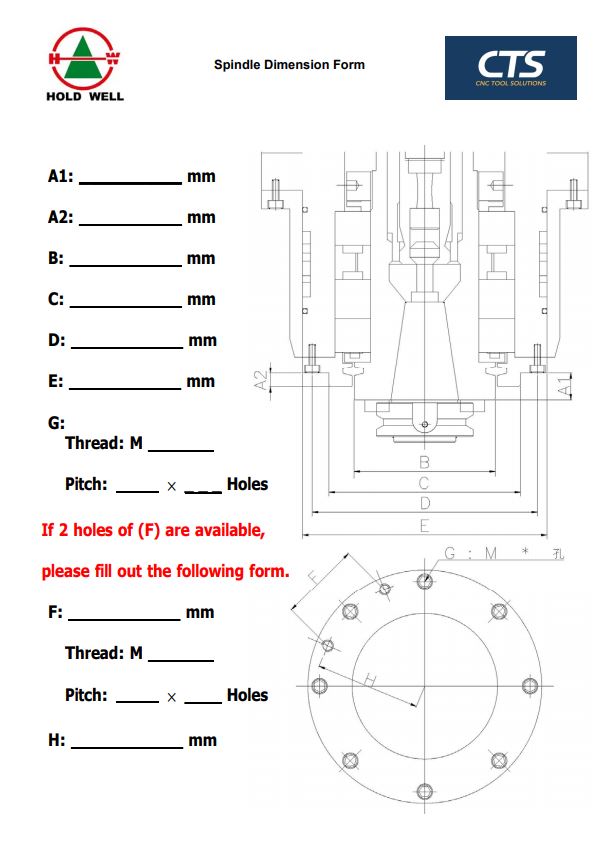

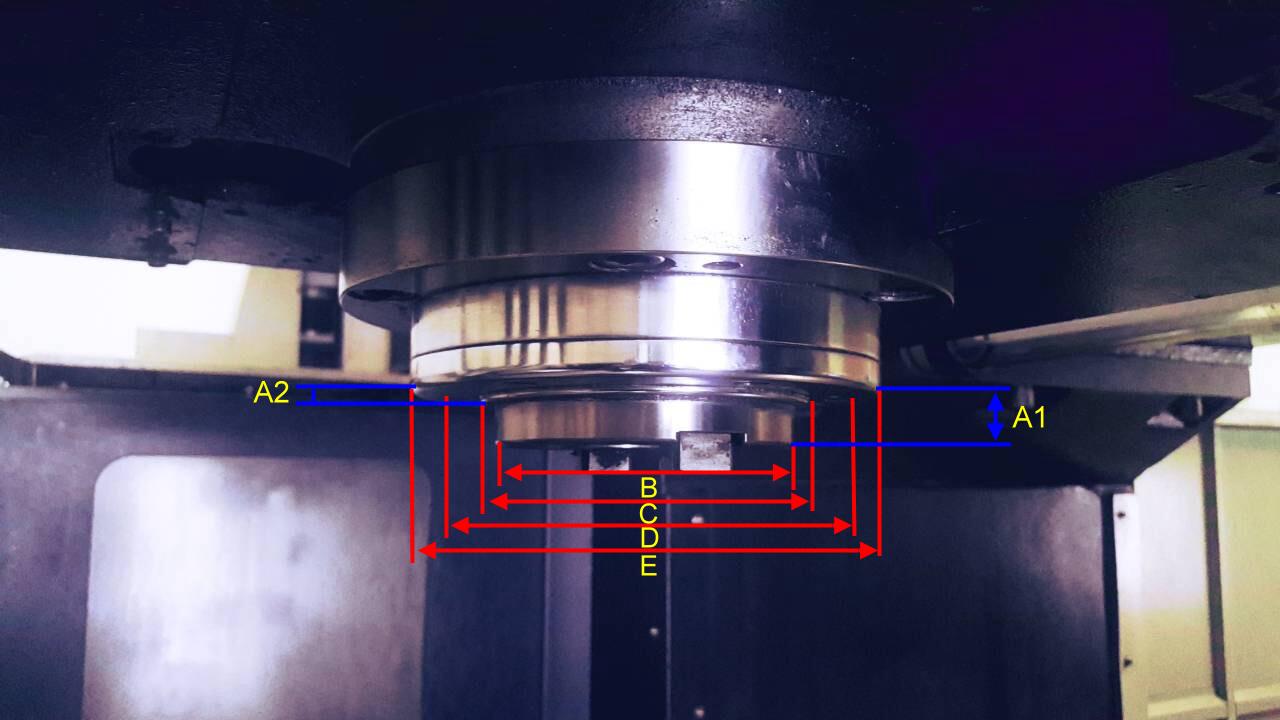

PLEASE SEE DIMENSION FORMS. EACH ANGLE HEAD COMES WITH A CUSTOM SETTING BLOCK FOR YOUR MACHINE. WE ALSO NEED THE MACHINE MAKE, MODEL, AND SERIAL NUMBER, AS WELL AS PICTURES OF THE SPINDLE (SEE PHOTOS IN GALLERY). A FOLLOW UP EMAIL WILL BE SENT UPON ORDERING TO COLLECT THIS INFORMATION FROM YOU!
**Estimated Lead Time - 10-12 business days
**Lead time may vary based on manufacturer's stock
