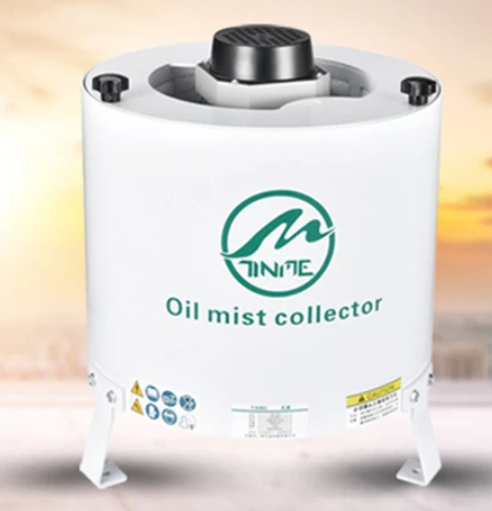

Oil Mist Collector TM-750A

For mist generated from neat oil and emulsions used in machines. It is designed to be mounted to the machine.

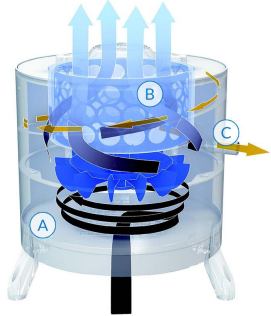

(1)Polluted air is drawn from machine tool into the lower pre-chamber (A)

(2)The acceleration effect, due to the centrifugal force generated by a rotating turbine, makes the oil particles bind together and return to liquid state, using the coalescence principle.

(3)A special Multilayer filter (B) having high filtration efficiency, stops and catches even the smallest pollutant particles, avoiding their dispersion in environment.

(4)Due to a special drainage tube (C) the liquid oil is sent back to the machine tool, to be re-used in working process.

HIGH FILTRATION LEVEL AND LONG LASTING FILTERS

The combination of the turbine centrifugal action and a high efficiency multilayer filter set guarantees a high filtration level. Filters are positioned after the centrifugal action of the turbine, thus they are exposed to a limited amount of polluting agents. This location grants the filters a longer life than the most common centrifugal or static filters in the market.

 REDUCED ELECTRICAL CONSUMPTION

 Uses energy saving motors with high efficiency and very low power (KW)

 TESTED MATERIAL

Internal materials passed compatibility stress tests, carried on with different types of neat oils and emulsions in the market.

SPECIAL TURBINE

Designed for avoiding dust settlement on its surface, secures no vibrations also in case of big quantities of particulate.

QUICK AND EASY MAINTENANCE

Internal filters can be cleaned or changed simple opening of a cover

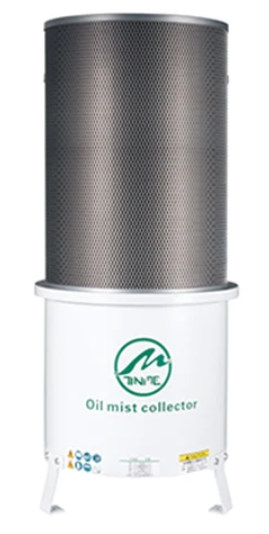

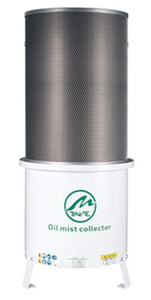

Post-filter (HEPA)

Post–filter cartridge for micro mist, smoke and vapor. It allows to reach a high filtration level up to 99.97%. (0.3um) The PM2.5 content in the filtered air meets international standards.

 After filter, the PM2.5 content in the filtered air meets international standards.
