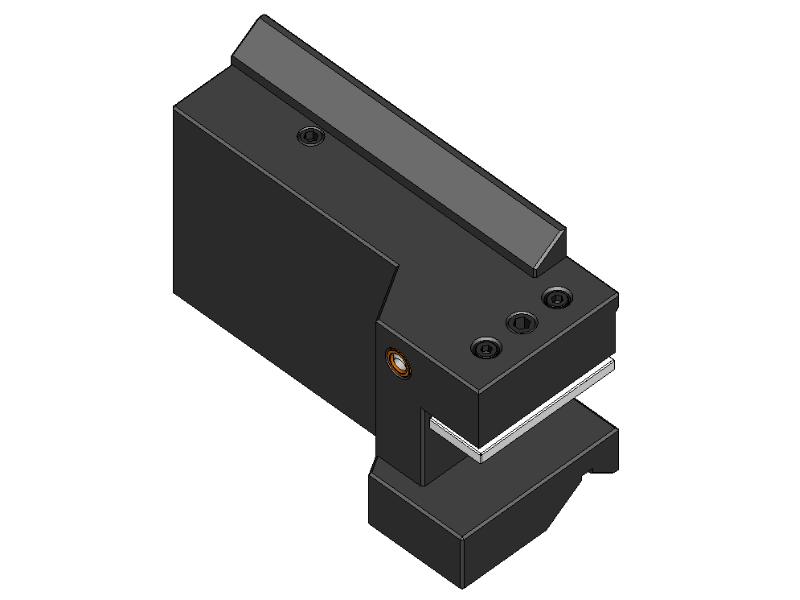

Dovetail Tool Holder A2 Turning THV-A2-115.32
Dovetail Turning Tool Holder - A2
- Turning Tool Holder A1/A2
- Suitable for Machine Turret HP-250 / HP-350.
- DIN 69881 Part 2 Form A

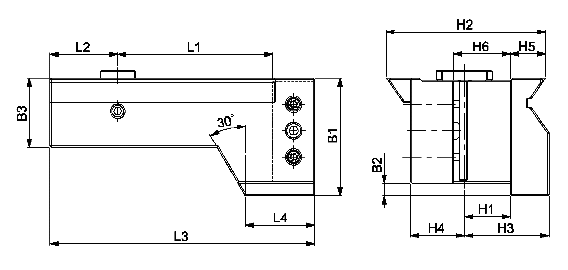

| Model No. | H2 | H1 | B1 | B2 | B3 | H3 | H4 | H5 | H6 | L1 | L2 | L3 | L4 | Ref. No. |
| THV-A2-115.32 | 115 | 32 | 85 | 9 | 50 | 60 | 40 | 25.5 | 41 | 112 | 49 | 191 | 50 | A2 - 115 x 32 |
Unit：mm
Quality and precision is our main focus. We want to make sure that you are satisfied with your live tooling needs in your shop. Let us help you find the right tool holders for your specific Machine.
**Estimated Lead Time - 10-12 business days
**Lead time may vary based on manufacturer's stock
