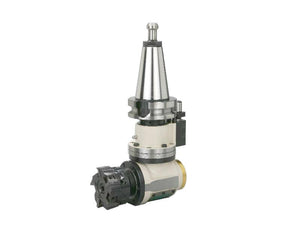

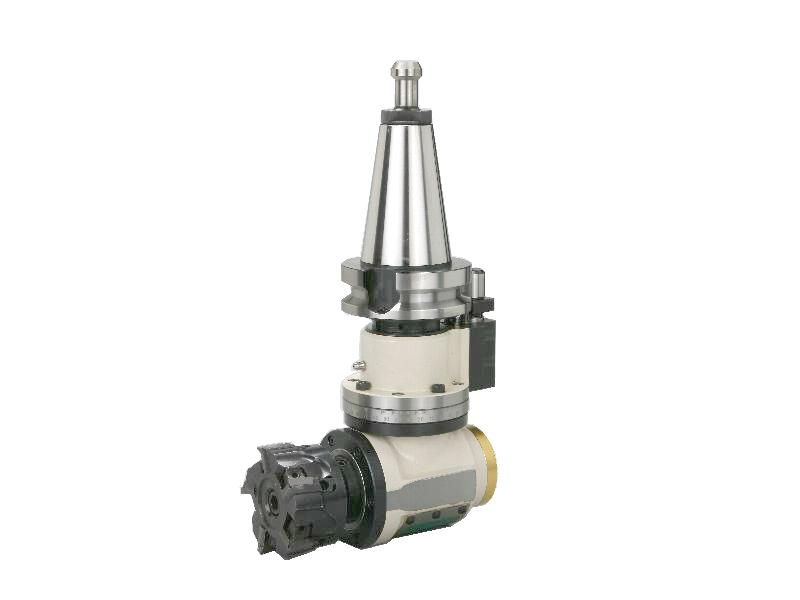

CAT40 FA25.4 Angle Head - AHA-CAT40-FA25.4
Angle heads allow 3-axis machines to be more versatile. Angle heads enable horizontal milling and drilling without requiring the work-piece to be re-positioned. This allows multiple operations in just one setup. With angle heads, you're not simply just adding a tool, but increasing your machine's capability.
- CAT40-FA25.4 90° Angle Head (AHA Type)
- Run-out:0.002 mm
- Squareness:10 Arc Second
- Material:Ductile Cast Iron (FCD65)
- R.P.M.:Max. 6,000 RPM
- Torque: Max. 50Nm
- Gear Ratio:1:0.81
- Spindle Type:BT, NT, SK(ISO), CAT
- Standard Accessory:Hook Spanner, ER Wrench, ER Nut
- Output Rotation: Reverse to Input Rotation
- The body is made of Ductile Cast Iron.
- High strength steel; stable machining.
- Wide selections of tool shanks. The design of ER32, ER40, and FA25.4 heads ensures various applications.
- Suitable for light and middle cutting.

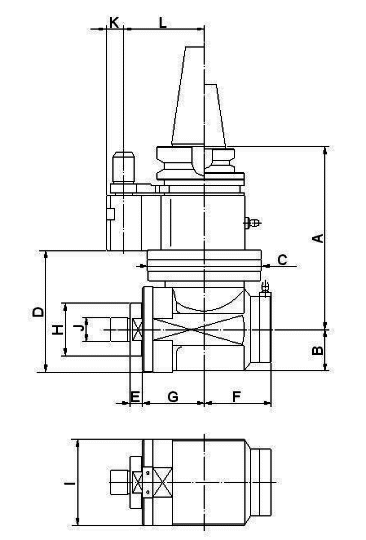

Model No. | A | B | C | D | E | F | G | H | I | J | K | L | N.W. (KG) |
AHA-CAT40-FA25.4 | 160 | 40 | 98 | 103 | 12 | 65 | 56 | 50 | 88 | 25.4 | 15 | 65/80/85 | 7.8 |
Unit:mm

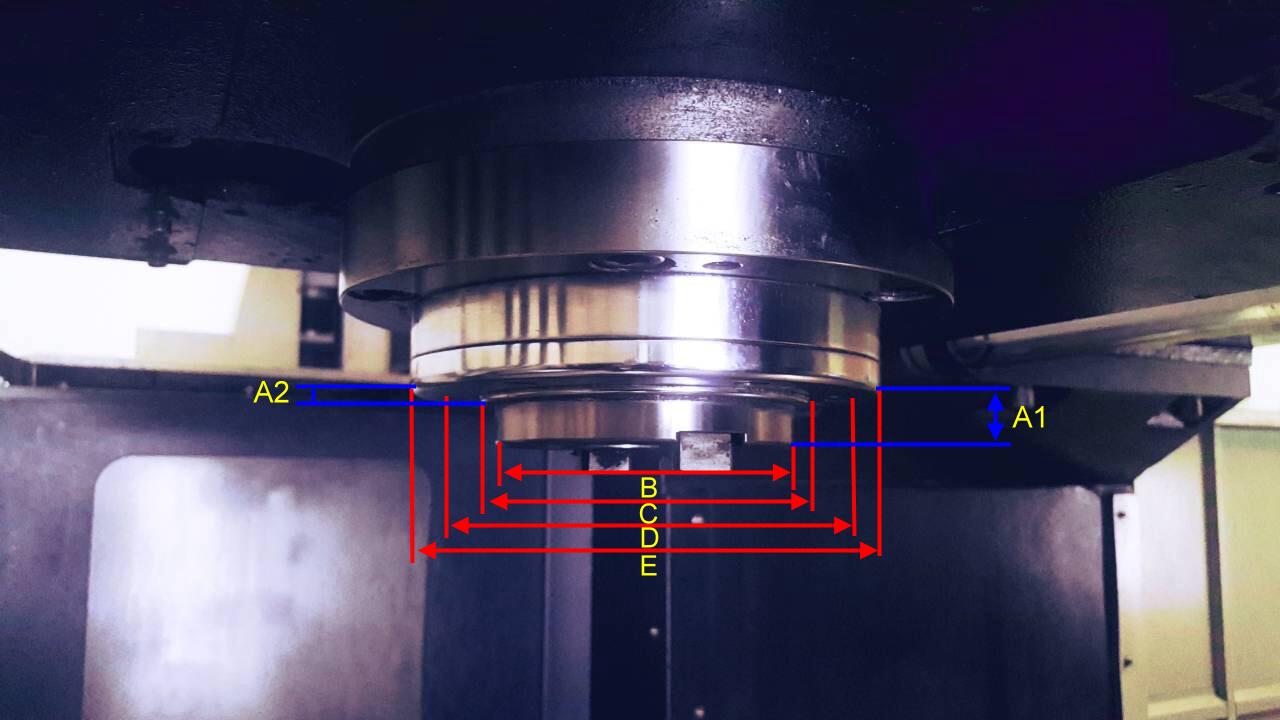

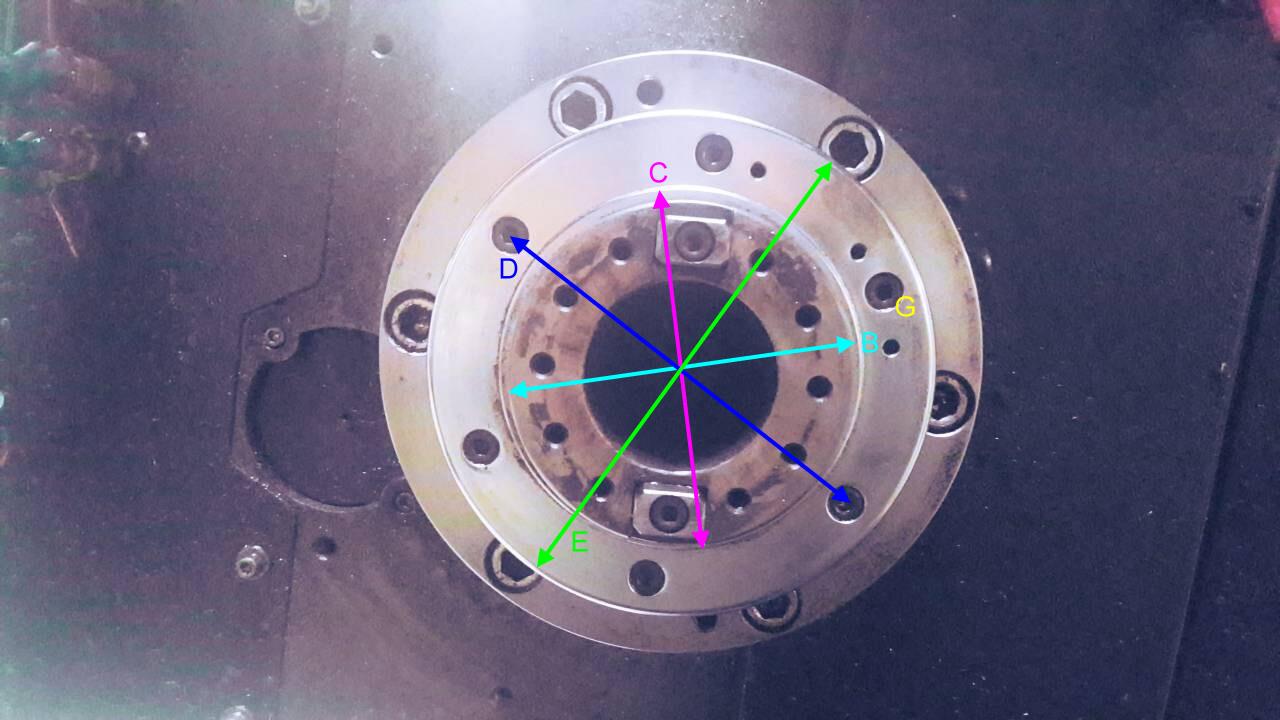

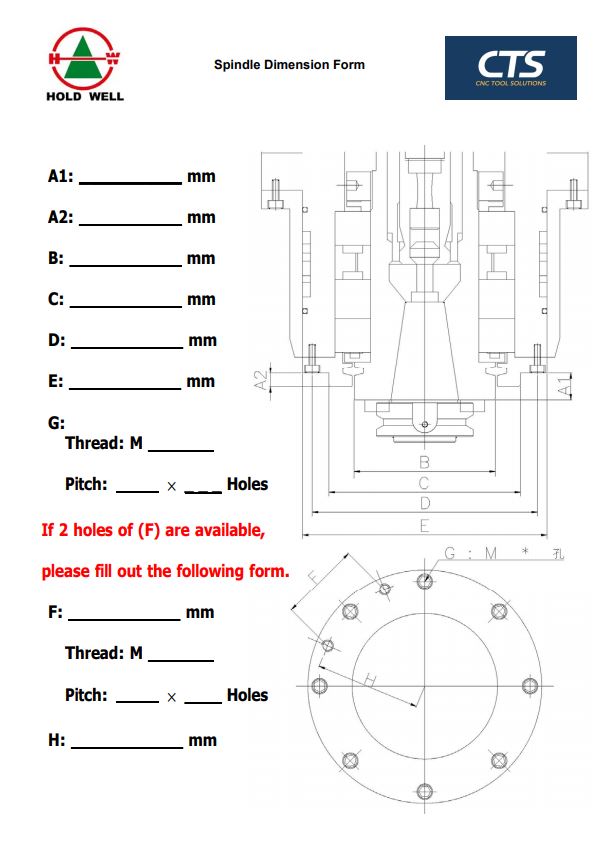

PLEASE SEE DIMENSION FORMS. EACH ANGLE HEAD COMES WITH A CUSTOM SETTING BLOCK FOR YOUR MACHINE. WE ALSO NEED THE MACHINE MAKE, MODEL, AND SERIAL NUMBER, AS WELL AS PICTURES OF THE SPINDLE (SEE PHOTOS IN GALLERY). A FOLLOW UP EMAIL WILL BE SENT UPON ORDERING TO COLLECT THIS INFORMATION FROM YOU!
**Estimated Lead Time - 10-12 business days
**Lead time may vary based on manufacturer's stock
