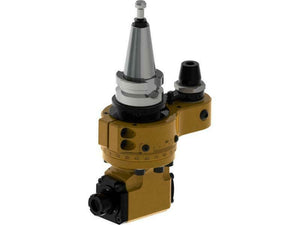

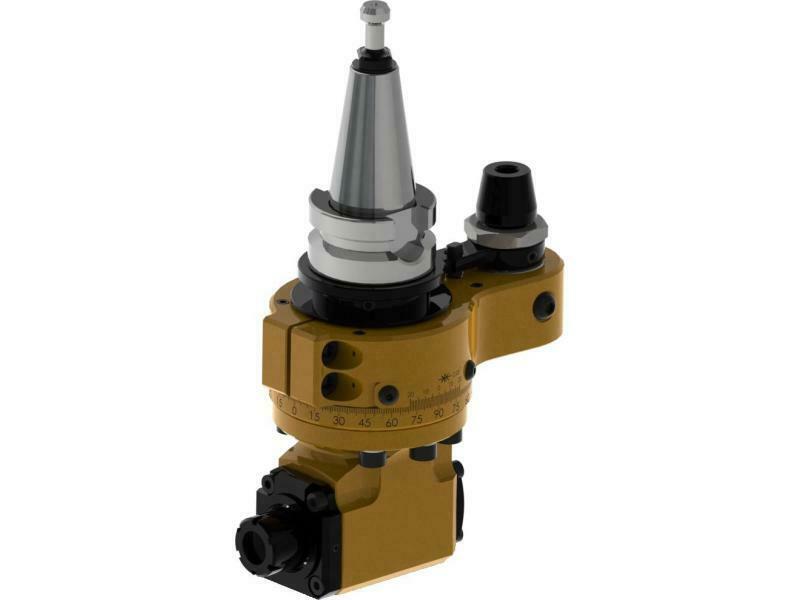

BT40 ER16 Light Angle Head - AHL-BT40-A1.65
Angle heads allow 3-axis machines to be more versatile. Angle heads enable horizontal milling and drilling without requiring the work-piece to be re-positioned. This allows multiple operations in just one setup. With angle heads, you're not simply just adding a tool, but increasing your machine's capability
- BT40 ER16 Light Angle Head
- Run-out：0.002 mm
- Squareness：10 Arc Second
- Material：Alloy Steel
- R.P.M.：Max. 6000 RPM
- Torque: Max. 12 Nm
- Gear Ratio：1:1
- Spindle Type：BT, NT, SK(ISO), CAT
- Standard Accessory：Open End Wrench, L Type Wrench
- Output Rotation: Reverse to Input Rotation

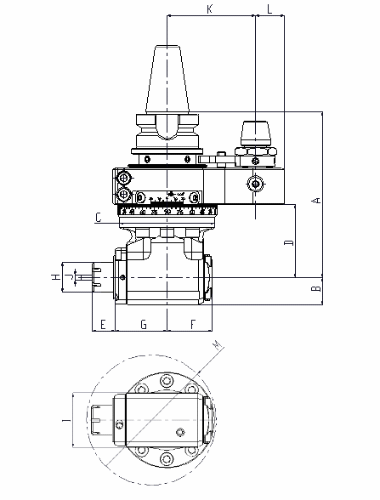

| Model No. | A | B | C | D | E | F | G | H | I | J | K | L | M | N.W. (KG) |
| AHL-BT40-A1.65 | 122 | 20 | 70 | 53.5 | 17 | 33.1 | 38.3 | 22 | 39.5 | 1-10 (ER16) | 65 | 21 | 95 | 3.3 |
Unit：mm
PLEASE SEE DIMENSION FORMS. EACH ANGLE HEAD COMES WITH A CUSTOM SETTING BLOCK FOR YOUR MACHINE. WE ALSO NEED THE MACHINE MAKE, MODEL, AND SERIAL NUMBER, AS WELL AS PICTURES OF THE SPINDLE (SEE PHOTOS IN GALLERY). A FOLLOW UP EMAIL WILL BE SENT UPON ORDERING TO COLLECT THIS INFORMATION FROM YOU!
**Estimated Lead Time - 10-12 business days
**Lead time may vary based on manufacturer's stock
