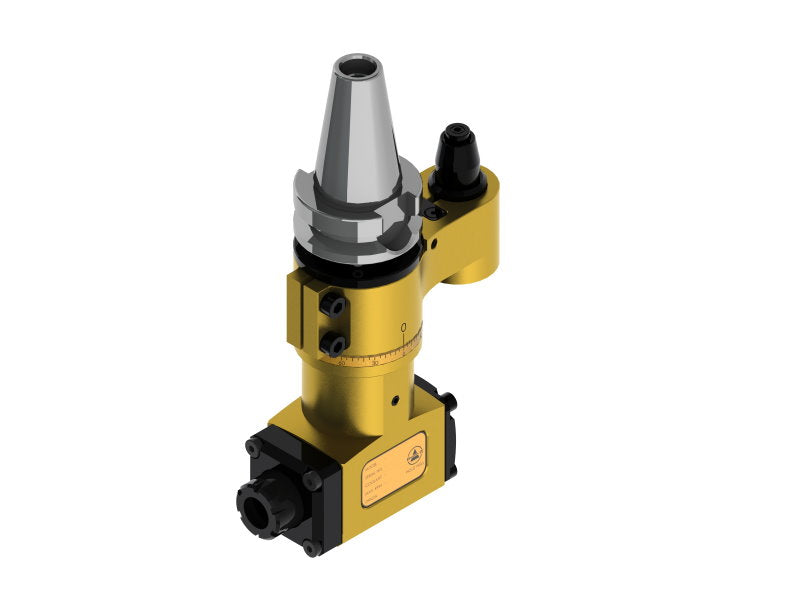

BT30-ER16 Mini Angle Head AHL-BT30-A4.50/65

Angle heads allow 3-axis machines to be more versatile.  Angle heads enable horizontal milling and drilling without requiring the work-piece to be re-positioned.  This allows multiple operations in just one setup.  With angle heads, you're not simply just adding a tool, but increasing your machine's capability.

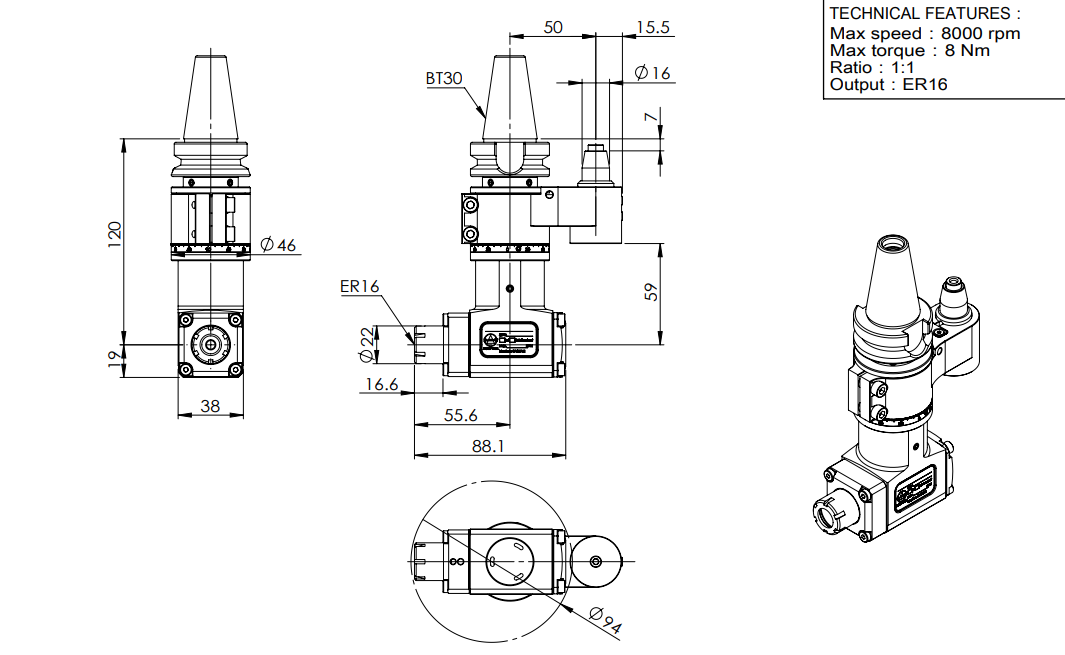

• ◎ BT30-ER16 Mini Angle Head (AHL Type)
  ◎ Run-out : 0.002 mm
  ◎ Material : Aerospace Alu. Alloy / Alloy Steel
  ◎ R.P.M. : Max. 8000 RPM
  ◎ Torque : Max. 8 Nm
  ◎ Drilling : Max. 10 mm
  ◎ Tapping : Max. M6
  ◎ Gear Ratio : 1：1
  ◎ Standard Accessory : M Type Wrench, Pin Wrench, ER Nut
  ◎ Output Rotation : Reverse to Input Rotation

**Lead time may vary based on manufacturer's stock
